AAOS - Create AIDL Interface

Tags: automotive android aidl

Android Interface Definition Language (AIDL) defines the programming interface that both the client and service agree upon, in order to communicate with each other using Inter-Process Communication (IPC).

Create AIDL Interface

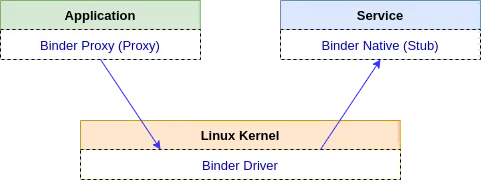

Compiling the AIDL interface auto-generates 2 classes - a Proxy class and a Stub class:

The Proxy class acts as a client-side representation, managing communication with the remote service and marshalling the request to a kernel driver (Binder)
The Stub class serves as the server-side implementation, un-marshalling incoming requests from the proxy (via the Binder) and executing the actual service operations defined in the AIDL

AIDL Binding

Create folder structure in vendor/trongvq/interfaces/virtio_rtc as below:

Directoryvendor/trongvq/interfaces/virtio_rtc
- Android.bp
- Directoryvendor/trongvq/virtio_rtc
  - IVirtio_RTC.aidl

Create an Android.bp file to define the build modules and build configuration:

aidl_interface {
    name: "vendor.trongvq.virtio_rtc",
    vendor: true, // installed in /vendor
    srcs: ["vendor/trongvq/virtio_rtc/*.aidl"],
    stability: "vintf", // Stable Vendor Interface
    owner: "TRONGVQ",
    backend: {
        cpp: {
            enabled: true,
        },
        java: {
            sdk_version: "module_current",
        },
    },
}

Create IVirtio_RTC.aidl file which define Interface’s methods:

package vendor.trongvq.virtio_rtc;

@VintfStability
interface IVirtio_RTC {
    String getTime();
    boolean setTime(in String seconds);
}

Tag AIDL current version:

Run make to build AIDL, but the first time, it will fail. Fix it with provided command:
```
mm -j10
```
```
API dump for the current version of AIDL interface vendor.trongvq.virtio_rtc does not exist.
Run the command "m vendor.trongvq.virtio_rtc-update-api" or add "unstable: true" to the build rule for the interface if it does not need to be versioned
```
Execute suggested command:
```
m vendor.trongvq.virtio_rtc-update-api
```
The command will create a tag current aidl api for the AIDL interface:
- Directoryvendor/trongvq/interfaces/virtio_rtc
  - Android.bp
  - Directoryvendor/trongvq/virtio_rtc
    IVirtio_RTC.aidl
    Directoryaidl_api
    Directoryvendor.trongvq.virtio_rtc
    Directorycurrent
    Directoryvendor/trongvq/virtio_rtc
    IVirtio_RTC.aidl
The current folder will be renamed to 1 if there is a new api created. That new version will be new current folder then after.
Build AIDL Interface:
vendor/trongvq/interfaces/virtio_rtc
```
mm -j10
```
```
find out/target/product/vsoc_x86_64_only/vendor/ -name *virtio_rtc*
```
```
out/target/product/vsoc_x86_64_only/vendor/bin/vendor.trongvq.virtio_rtc-cpp-analyzer
out/target/product/vsoc_x86_64_only/vendor/framework/vendor.trongvq.virtio_rtc-V1-java.jar
out/target/product/vsoc_x86_64_only/vendor/lib64/libvendor_trongvq_virtio_rtc_V1.dylib.so
out/target/product/vsoc_x86_64_only/vendor/lib64/vendor.trongvq.virtio_rtc-V1-ndk.so
out/target/product/vsoc_x86_64_only/vendor/lib64/vendor.trongvq.virtio_rtc-V1-cpp.so
```
Refer:
- https://source.android.com/docs/core/architecture/aidl/aidl-hals#choosing-runtime
- https://source.android.com/docs/core/architecture/aidl/stable-aidl#module-naming-rules
AIDL has three different backends: Java, NDK, CPP:
- Java vendor.trongvq.virtio_rtc-V1-java.jar: Stable Java Proxy and Java Stub classes, use find ./out/ -name *Virtio_RTC.java to locate the generated file.
- NDK vendor.trongvq.virtio_rtc-V1-ndk.so: Stable Native Binder Proxy (BpVirio_RTC.h) class for client code and Binder Native Stub (BnVitio_RTC.h), linked to libbinder_ndk, use for vendor service and client, use find ./out/ -name *Virtio_RTC.h to locate the generated file.
- CPP vendor.trongvq.virtio_rtc-V1-cpp.so: Unstable CPP Proxy (BpVirio_RTC.h) and Stube (BnVitio_RTC.h) classes, linked to libbinder, use find ./out/ -name *Virtio_RTC.h to locate the generated file.
Add AIDL to vendor packages:

Create a vendor make file:
device/google/cuttlefish/shared/trongvq.mk
```
PRODUCT_PACKAGES += vendor.trongvq.virtio_rtc
```
Add vendor make file into Cuttlefish device make file:
device/google/cuttlefish/shared/device.mk
```
# Include vendor trongvq modules
$(call inherit-product, device/google/cuttlefish/shared/trongvq.mk)
```
Rebuild Android to include built AIDL library to target device

Create Service

Refer: https://source.android.com/docs/core/architecture/aidl/aidl-backends

Create a vendor service in vendor/trongvq/services/virtio_rtc:

Directoryvendor/trongvq/
- device_framework_matrix.xml # compatibility
- Directoryinterfaces/virio_rtc
  - Android.bp
  - Directoryvendor/trongvq/virtio_rtc
    IVirtio_RTC.aidl
- Directoryservices/virtio_rtc
  - Android.bp
  - inc
  - Directorysrc
    Virtio_RTC_Service.cpp
  - vendor.trongvq.virtio_rtc-service.rc # start service at startup
  - vendor.trongvq.virtio_rtc-service.xml # declare and configure interface

Create Android.bp to declare a Service binary:

cc_binary {
    name: "vendor.trongvq.virtio_rtc-service",
    vendor: true,
    relative_install_path: "hw", // relative to /vendor/bin
    init_rc: ["vendor.trongvq.virtio_rtc-service.rc"],
    vintf_fragments: ["vendor.trongvq.virtio_rtc-service.xml"],

    local_include_dirs: [
        "inc",
    ],

    srcs: [
        "src/*.cpp",
    ],

    cflags: [
        "-Wall",
        "-Werror",
    ],

    shared_libs: [
        "liblog",
        "libutils",
        "libbinder_ndk", // stable version
        "vendor.trongvq.virtio_rtc-V1-ndk", // stable version
    ],
}

Create Service RC file:

service vendor.trongvq.virtio_rtc-service /vendor/hw/vendor.trongvq.virtio_rtc-service
    interface aidl vendor.trongvq.virtio_rtc.IVirtio_RTC/default
    class hal
    user system
    group system

Create Service XML file:

<manifest version="1.0" type="device">
    <hal format="aidl">
        <name>vendor.trongvq.virtio_rtc</name>
        <version>1</version>
        <fqname>IVirtio_RTC/default</fqname>
    </hal>
</manifest>

Add Service to target device:

PRODUCT_PACKAGES += vendor.trongvq.virtio_rtc
 PRODUCT_PACKAGES += vendor.trongvq.virtio_rtc-service

However, when rebuild system, it fails:

ERROR: files are incompatible: The following instances are in the device manifest but not specified in framework compatibility matrix:
    vendor.trongvq.virtio_rtc.IVirtio_RTC/default (@1)
Suggested fix:
1. Update deprecated HALs to the latest version.
2. Check for any typos in device manifest or framework compatibility matrices with FCM version >= 202404.
3. For new platform HALs, add them to any framework compatibility matrix with FCM version >= 202404 where applicable.
4. For device-specific HALs, add to DEVICE_FRAMEWORK_COMPATIBILITY_MATRIX_FILE or DEVICE_PRODUCT_COMPATIBILITY_MATRIX_FILE

To fix this, move to the next step.

Add Service to Device Framework Compatibility Matrix (FCM):

The framework compatibility matrix consists of the system compatibility matrix, the product compatibility matrix, and the system_ext compatibility matrix.

The requirements of the FCM must be satisfied by the device manifest (requirements enforced at build time, runtime, and in VTS):

correct name
compatible versions
compatible interface instances

<compatibility-matrix version="1.0" type="framework">
    <hal format="aidl" optional="true">
        <name>vendor.trongvq.virtio_rtc</name>
        <version>1</version>
        <interface>
            <name>IVirtio_RTC</name>
            <instance>default</instance>
        </interface>
    </hal>
</compatibility-matrix>

Add to vendor packages:

 DEVICE_FRAMEWORK_COMPATIBILITY_MATRIX_FILE := vendor/trongvq/device_framework_matrix.xml
PRODUCT_PACKAGES += vendor.trongvq.virtio_rtc
PRODUCT_PACKAGES += vendor.trongvq.virtio_rtc-service

Rebuild again

The service binary is built and copied into output folder at vendor/bin/hw (noted that Android.bp uses relative path hw):
```
./out/target/product/vsoc_x86_64_only/vendor/bin/hw/vendor.trongvq.virtio_rtc-service
```

Set SE Policy

Directorydevice/google/cuttlefish/shared/sepolicy/vendor
- file_contexts
- hal_virtio_rtc_default.te
Directoryvendor/trongvq/
- device_framework_matrix.xml # compatibility
- Directoryinterfaces/virio_rtc
  - Android.bp
  - Directoryvendor/trongvq/virtio_rtc
    IVirtio_RTC.aidl
- Directoryservices/virtio_rtc
  - Android.bp
  - inc
  - Directorysrc
    Virtio_RTC_Service.cpp
  - vendor.trongvq.virtio_rtc-service.rc # start service at startup
  - vendor.trongvq.virtio_rtc-service.xml # declare and configure interface

Launch Cuttlefish device and check in logcat or dmesg to see that the service could not start:

dmesg | grep virtio_rtc

Could not start service 'vendor.trongvq.virtio_rtc-service' as part of class 'hal': File /vendor/bin/hw/vendor.trongvq.virtio_rtc-service(labeled "u:object_r:vendor_file:s0") has incorrect label or no domain transition from u:r:init:s0 to another SELinux domain defined. Have you configured your service correctly? https://source.android.com/security/selinux/device-policy#label_new_services_and_address_denials. Note: this error shows up even in permissive mode in order to make auditing denials possible.

File vendor.trongvq.virtio_rtc-service is labeled as u:object_r:vendor_file:s0 which is incorrect. On target shell, use ls -lZ to see the label.

That default label is defined in file system/sepolicy/private/file_contexts:

# Vendor files
/(vendor|system/vendor)(/.*)?    u:object_r:vendor_file:s0

Add SE Policy for vendor service:

The vendor service should have the label hal_virtio_rtc_default_exec defined in Device SE Policy:
device/google/cuttlefish/shared/sepolicy/vendor/file_contexts
```
/vendor/bin/hw/vendor\.trongvq\.virtio_rtc-service u:object_r:hal_virtio_rtc_default_exec:s0
```
When rebuild, it fails due to type hal_virtio_rtc_default_exec is not defined.
Create vendor SE Policy file:

Add a new file hal_virtio_rtc_default.te:
device/google/cuttlefish/shared/sepolicy/vendor/hal_virtio_rtc_default.te
```
type hal_virtio_rtc_default, domain;
type hal_virtio_rtc_default_exec, exec_type, vendor_file_type, file_type;

init_daemon_domain(hal_virtio_rtc_default);
```
- domain means it can be assigned to processes and that it is allowed to execute code.
- exec_type means it can be executed, applied for vendor_file_type and general file_type.
- init_daemon_domain is an SELinux macro that’s defined in the Android public policies, details in system/sepolicy/public/te_macros. It’s used to transition the domain context from init to hal_virtio_rtc_default.

Rebuild the target and it should be compiled.

Go to the device shell, verify the label of the service binary:

ls -lZ vendor/bin/hw/vendor.trongvq.virtio_rtc-service

-rwxr-xr-x 1 root shell u:object_r:hal_virtio_rtc_default_exec:s0 vendor/bin/hw/vendor.trongvq.virtio_rtc-service

and check the logcat or dmesg:

dmesg | grep virtio_rtc

init: starting service 'vendor.trongvq.virtio_rtc-service'...
init: ... started service 'vendor.trongvq.virtio_rtc-service' has pid 508

Implement Service

Directorydevice/google/cuttlefish/shared/sepolicy/vendor
- service.te
- service_contexts
- file_contexts
- hal_virtio_rtc_default.te
Directoryvendor/trongvq/
- device_framework_matrix.xml # compatibility
- Directoryinterfaces/virio_rtc
  - Android.bp
  - Directoryvendor/trongvq/virtio_rtc
    IVirtio_RTC.aidl
- Directoryservices/virtio_rtc
  - Android.bp
  - Directoryinc
    Virtio_RTC.h
  - Directorysrc
    Virtio_RTC.cpp
    Virtio_RTC_Service.cpp
  - vendor.trongvq.virtio_rtc-service.rc # start service at startup
  - vendor.trongvq.virtio_rtc-service.xml # declare and configure interface

The AIDL interface is generated as NDK stable source code:

tree out/soong/.intermediates/vendor/trongvq/interfaces/virtio_rtc/vendor.trongvq.virtio_rtc-V1-ndk-source/gen/

├── include
│   ├── aidl
│   │   └── vendor
│   │       └── trongvq
│   │           └── virtio_rtc
│   │               ├── BnVirtio_RTC.h
│   │               ├── BpVirtio_RTC.h
│   │               └── IVirtio_RTC.h
└── vendor
    └── trongvq
        └── virtio_rtc
            ├── IVirtio_RTC.cpp
            └── IVirtio_RTC.cpp.d

The AIDL interace is defined in class IVirtio_RTC (inheriates ::ndk::ICInterface).
The Binder Proxy is defined in class BpVirtio_RTC (inheriates ::ndk::BpCInterface<IVirtio_RTC>), and implemented in IVirtio_RTC.cpp. The methods of interface are fully implemented for Binder Proxy. Any process having a Binder Proxy object can call its methods to communicate with the Binder Native Stub.
The Binder Native is defined in class BnVirtio_RTC (inheriates ::ndk::BnCInterface<IVirtio_RTC>), but partially impplemented in IVirtio_RTC.cpp. It is required to implement virtual methods declared in the AIDL interfaces. These methods are called through the Binder IPC, and they are user-defined functionanities.

Create Service Header in Virtio_RTC.h:

#pragma once

#include <aidl/vendor/trongvq/virtio_rtc/BnVirtio_RTC.h>

namespace aidl::vendor::trongvq::virtio_rtc {
    class Virtio_RTC : public BnVirtio_RTC {
    public:
        ::ndk::ScopedAStatus getTime(std::string *_aidl_return) override;
        ::ndk::ScopedAStatus setTime(const std::string &in_seconds, bool *_aidl_return) override;
    };
} // namespace aidl::vendor::trongvq::virtio_rtc

Implement Service Methods in Virtio_RTC.cpp:

#include "Virtio_RTC.h"

#include <fcntl.h>
#include <utils/Log.h>

namespace aidl::vendor::trongvq::virtio_rtc {
    static const char VIRTIO_RTC_PATH[] = "/dev/virtio_rtc";

    ::ndk::ScopedAStatus Virtio_RTC::getTime(std::string *_aidl_return) {
        int fd = open(VIRTIO_RTC_PATH, O_RDONLY);
        if (fd < 0) {
            ALOGE("Failed to open %s", VIRTIO_RTC_PATH);
            return ndk::ScopedAStatus(AStatus_fromExceptionCode(EX_SERVICE_SPECIFIC));
        }

        char buf[64];
        int len = read(fd, buf, sizeof(buf));
        if (len < 0) {
            close(fd);
            ALOGE("Failed to read %s", VIRTIO_RTC_PATH);
            return ndk::ScopedAStatus(AStatus_fromExceptionCode(EX_SERVICE_SPECIFIC));
        }

        close(fd);
        buf[len] = '\0';
        ALOGI("Current time: %s", buf);

        *_aidl_return = buf;
        return ndk::ScopedAStatus::ok();
    }

    ::ndk::ScopedAStatus Virtio_RTC::setTime(const std::string &in_seconds, bool *_aidl_return) {

        int fd = open(VIRTIO_RTC_PATH, O_WRONLY);
        if (fd < 0) {
            ALOGE("Failed to open %s", VIRTIO_RTC_PATH);
            return ndk::ScopedAStatus(AStatus_fromExceptionCode(EX_SERVICE_SPECIFIC));
        }

        int len = write(fd, in_seconds.c_str(), in_seconds.size());
        if (len < 0) {
            close(fd);
            ALOGE("Failed to write %s", VIRTIO_RTC_PATH);
            return ndk::ScopedAStatus(AStatus_fromExceptionCode(EX_SERVICE_SPECIFIC));
        }

        close(fd);

        ALOGI("Setting time to %s", in_seconds.c_str());
        *_aidl_return = true;
        return ndk::ScopedAStatus::ok();
    }
} // namespace aidl::vendor::trongvq::virtio_rtc

Update SE Policy:

Rebuild target and check service in the logcat or dmesg, expect it fails with avc: denied error:

W binder:3962_2: type=1400 audit(0.0:147): avc:  denied  { call } for  scontext=u:r:hal_virtio_rtc_default:s0 tcontext=u:r:servicemanager:s0 tclass=binder permissive=0

When service calls AServiceManager_addService(), the process calls the Service Manager via the Binder to register its service. This step needs a permission!

Use tool audit2allow to convert SELinux audit messages into SELinux allow rules:
```
sudo apt install policycoreutils-python-utils
```

Now pull the policy file, and read logcat to check audit message:

mkdir ~/temp
cd ~/temp
adb pull /sys/fs/selinux/policy
adb logcat -b all -d | grep virtio_rtc | audit2allow -p policy

#============= hal_virtio_rtc_default ==============
allow hal_virtio_rtc_default servicemanager:binder call;

Add suggested statement to vendor policy:

allow hal_virtio_rtc_default servicemanager:binder call;

Rebuild again, and check service in the logcat or dmesg, expect it fails with another avc: denied error:

W binder:3914_2: type=1400 audit(0.0:124): avc:  denied  { transfer } for  scontext=u:r:hal_virtio_rtc_default:s0 tcontext=u:r:servicemanager:s0 tclass=binder permissive=0

Run the tool and add suguested statement to vendor policy:

allow hal_virtio_rtc_default servicemanager:binder call;
allow hal_virtio_rtc_default servicemanager:binder { call transfer };

Rebuild again, and check service in the logcat or dmesg, expect it fails with another avc: denied error:

I auditd  : avc:  denied  { add } for pid=3947 uid=1000 name=vendor.trongvq.virtio_rtc.IVirtio_RTC/default scontext=u:r:hal_virtio_rtc_default:s0 tcontext=u:object_r:default_android_service:s0 tclass=service_manager permissive=0

Run the tool and add suguested statement to vendor policy:
device/google/cuttlefish/shared/sepolicy/vendor/hal_virtio_rtc_default.te
```
allow hal_virtio_rtc_default default_android_service:service_manager add;
```

Building again and expect the following SELinux neverallow build error due to service_manager add permission:

neverallow check failed at out/soong/.intermediates/system/sepolicy/plat_pub_versioned.cil/android_common/vsoc_x86_64_only/plat_pub_versioned.cil:6162
(neverallow base_typeattr_224_202404 default_android_service_202404 (service_manager (add find list)))
    <root>
    allow at out/soong/.intermediates/system/sepolicy/vendor_sepolicy.cil/android_common/vsoc_x86_64_only/vendor_sepolicy.cil:1697
        (allow hal_virtio_rtc_default default_android_service_202404 (service_manager (add)))

Open system/sepolicy/public/domain.te, it has a specific neverallow rule that does not allow service_manager to add a default_android_service:

# Do not allow service_manager add for default service labels.
# Instead domains should use a more specific type such as
# system_app_service rather than the generic type.
# New service_types are defined in {,hw,vnd}service.te and new mappings
# from service name to service_type are defined in {,hw,vnd}service_contexts.
neverallow * default_android_service:service_manager *;
neverallow * default_android_vndservice:service_manager *;
neverallow * default_android_hwservice:hwservice_manager *;

To fix this, need to define a specific service type:

# Virtio_RTC Service
type hal_virtio_rtc_service, service_manager_type, hal_service_type;

then assign it a new label:

# Virtio_RTC Service
vendor.trongvq.virtio_rtc.IVirtio_RTC/default u:object_r:hal_virtio_rtc_service:s0

then change default_android_service to hal_virtio_rtc_service in service_manager add:

allow hal_virtio_rtc_default default_android_service:service_manager add;
allow hal_virtio_rtc_default hal_virtio_rtc_service:service_manager add;

Rebuild and verify service is working well

service list | grep virtio_rtc

292  vendor.trongvq.virtio_rtc.IVirtio_RTC/default: [vendor.trongvq.virtio_rtc.IVirtio_RTC]

Interface Native Test App

Directorydevice/google/cuttlefish/shared/sepolicy/vendor
- service.te
- service_contexts
- file.te
- file_contexts
- hal_virtio_rtc_default.te
Directoryvendor/trongvq/
- device_framework_matrix.xml # compatibility
- Directoryinterfaces/virio_rtc
  - Android.bp
  - Directoryvendor/trongvq/virtio_rtc
    IVirtio_RTC.aidl
    Directorytest
    Android.bp
    Virtio_RTC_Test.cpp
- Directoryservices/virtio_rtc
  - Android.bp
  - Directoryinc
    Virtio_RTC.h
  - Directorysrc
    Virtio_RTC.cpp
    Virtio_RTC_Service.cpp
  - vendor.trongvq.virtio_rtc-service.rc # start service at startup
  - vendor.trongvq.virtio_rtc-service.xml # declare and configure interface

Create Android.bp to declare a test binary:

cc_binary {
    name: "Virtio_RTC_Test",
    vendor: true,
    relative_install_path: "hw",
    srcs: ["Virtio_RTC_Test.cpp"],

    shared_libs: [
        "libbinder_ndk",
        "vendor.trongvq.virtio_rtc-V1-ndk",
    ],
}

Create Virtio_RTC_Test.cpp to implement the test binary:

#include <aidl/vendor/trongvq/virtio_rtc/IVirtio_RTC.h>
#include <android/binder_manager.h>
#include <chrono>
#include <iostream>
#include <thread>

using aidl::vendor::trongvq::virtio_rtc::IVirtio_RTC;

int main(int argc, char **argv) {
    std::string instance = std::string(IVirtio_RTC::descriptor) + "/default";
    std::shared_ptr<IVirtio_RTC> rtc = IVirtio_RTC::fromBinder(
        ndk::SpAIBinder(AServiceManager_getService(instance.c_str())));
    std::string time;

    rtc->getTime(&time);
    std::cout << "Current time: " << time; // returned string has newline
    std::this_thread::sleep_for(std::chrono::seconds(1));
    rtc->getTime(&time);
    std::cout << "Current time: " << time;

    bool success = false;
    rtc->setTime("1234", &success);
    rtc->getTime(&time);
    std::cout << "Current time: " << time;
    std::this_thread::sleep_for(std::chrono::seconds(1));
    rtc->getTime(&time);
    std::cout << "Current time: " << time;

    return 0;
}

Change owner of /dev/virtio_rtc:

When build and run vendor/bin/hw/Virtio_RTC_Test, it prints out:

E vendor.trongvq.virtio_rtc-service: Failed to open /dev/virtio_rtc

Device is created for root user:

ls -al /dev/virtio_rtc

crw------- 1 root root 488,   0 2024-10-27 13:12 /dev/virtio_rtc

Service is running under system user:

ps -AZ | grep virtio_rtc

u:r:hal_virtio_rtc_default:s0 system binder_ioctl_write_read 0 S vendor.trongvq.virtio_rtc-service

Need to add an action at start up:

on boot
   chown system root /dev/virtio_rtc

Add SE Policy for /dev/virtio_rtc:

When build and run again, vendor/bin/hw/Virtio_RTC_Test prints out audit error:

W binder:506_1: type=1400 audit(0.0:113): avc:  denied  { read } for  name="virtio_rtc" dev="tmpfs" ino=1297 scontext=u:r:hal_virtio_rtc_default:s0 tcontext=u:object_r:device:s0 tclass=chr_file permissive=0
W binder:506_1: type=1400 audit(0.0:113): avc:  denied  { write } for  name="virtio_rtc" dev="tmpfs" ino=1297 scontext=u:r:hal_virtio_rtc_default:s0 tcontext=u:object_r:device:s0 tclass=chr_file permissive=0

Run audit2allow to get:

#============= hal_virtio_rtc_default ==============
allow hal_virtio_rtc_default device:chr_file { read write };

However, it conflics with a neverallow rule for general device:

# Don't allow raw read/write/open access to generic devices.
# Rather force a relabel to a more specific type.
neverallow domain device:chr_file { open read write };

Therefore, define a new label virtio_rtc_device:

# Virtio_RTC Device
 type virtio_rtc_device, dev_type;

Then assign new label to the dev /dev/virtio_rtc:

# Virtio_RTC Device
/dev/virtio_rtc u:object_r:virtio_rtc_device:s0

Finally, allow service to access the device with defined label:

allow hal_virtio_rtc_default virtio_rtc_device:chr_file { open read write };

Rebuild and run, verify that the test binary can get and set Virtio_RTC seconds:

vendor/bin/hw/Virtio_RTC_Test

Current time: 86
Current time: 87
Current time: 1234
Current time: 1235

I vendor.trongvq.virtio_rtc-service: Current time: 86
I vendor.trongvq.virtio_rtc-service: Current time: 87
I vendor.trongvq.virtio_rtc-service: Setting time to 1234
I vendor.trongvq.virtio_rtc-service: Current time: 1234
I vendor.trongvq.virtio_rtc-service: Current time: 1235

Vendor Test Suite

Refer: https://source.android.com/docs/core/tests/vts.

The Android Vendor Test Suite (VTS) provides extensive testing on the following:

Kernel
Hardware abstraction layer (HAL)

VTS runs on a desktop machine and executes test cases directly on attached devices or on the emulators. The test cases can be GTest-style tests, kernel tests, or JUnit-style tests written in Java.

Directorydevice/google/cuttlefish/shared/sepolicy/vendor
- service.te
- service_contexts
- file.te
- file_contexts
- hal_virtio_rtc_default.te
Directoryvendor/trongvq/
- device_framework_matrix.xml # compatibility
- Directoryinterfaces/virio_rtc
  - Android.bp
  - Directoryvendor/trongvq/virtio_rtc
    IVirtio_RTC.aidl
    Directorytest
    Android.bp
    Virtio_RTC_Test.cpp
- Directoryservices/virtio_rtc
  - Android.bp
  - Directoryinc
    Virtio_RTC.h
  - Directorysrc
    Virtio_RTC.cpp
    Virtio_RTC_Service.cpp
  - vendor.trongvq.virtio_rtc-service.rc # start service at startup
  - vendor.trongvq.virtio_rtc-service.xml # declare and configure interface
- Directoryvts
  - Android.bp
  - Vts_Virtio_RTC_Test.cpp

Create Android.bp to declare VTS Test Suite:

cc_test {
    name: "VtsVirtioRTCTest",

    defaults: [
        "VtsHalTargetTestDefaults",
        "use_libaidlvintf_gtest_helper_static",
    ],

    srcs: [
        "Vts_Virtio_RTC_Test.cpp",
    ],

    cflags: [
        "-Wall",
        "-Werror",
    ],

    shared_libs: [
        "liblog",
        "libutils",
        "libbinder_ndk",
        "vendor.trongvq.virtio_rtc-V1-ndk",
    ],

    static_libs : [
    ],

    test_suites: [
        "general-tests", // atest
        "vts", // vts run
    ],

    compile_multilib: "64"
}

Create Vts_Virtio_RTC_Test.cpp to impelement test cases:

#include <android/binder_manager.h>
#include <android/binder_process.h>
#include <gtest/gtest.h>
#include <thread>

#include <aidl/vendor/trongvq/virtio_rtc/IVirtio_RTC.h>

using aidl::vendor::trongvq::virtio_rtc::IVirtio_RTC;

class VirtioRTCServiceTest : public testing::Test {
public:
    void SetUp() override {
        std::string instance = std::string(IVirtio_RTC::descriptor) + "/default";
        mService = IVirtio_RTC::fromBinder(
            ndk::SpAIBinder(AServiceManager_waitForService(instance.c_str())));
        ASSERT_NE(mService, nullptr);
    }

    std::shared_ptr<IVirtio_RTC> mService;
};

TEST_F(VirtioRTCServiceTest, GetTime) {
    std::string time1;
    ASSERT_TRUE(mService->getTime(&time1).isOk());
    ASSERT_FALSE(time1.empty());

    std::this_thread::sleep_for(std::chrono::milliseconds(1100));

    std::string time2;
    ASSERT_TRUE(mService->getTime(&time2).isOk());
    ASSERT_FALSE(time2.empty());

    ASSERT_NE(time1, time2);

}

TEST_F(VirtioRTCServiceTest, SetTime) {
    std::string time("1234\n");
    bool success = false;

    std::string time1;
    ASSERT_TRUE(mService->getTime(&time1).isOk());
    ASSERT_FALSE(time1.empty());
    ASSERT_NE(time1, time);

    ASSERT_TRUE(mService->setTime(time, &success).isOk());
    ASSERT_TRUE(success);

    std::string time2;
    ASSERT_TRUE(mService->getTime(&time2).isOk());
    ASSERT_FALSE(time2.empty());
    ASSERT_EQ(time2, time);
}

int main(int argc, char **argv) {
    ABinderProcess_setThreadPoolMaxThreadCount(1);
    ABinderProcess_startThreadPool();

    std::thread([] { ABinderProcess_joinThreadPool(); }).detach();

    testing::InitGoogleTest(&argc, argv);
    return RUN_ALL_TESTS();
}

Export AIDL for vendor access:

When buid, there is an error that AIDL NDK variant is missing:

error: vendor/trongvq/vts/Android.bp:1:1: dependency "vendor.trongvq.virtio_rtc-V1-ndk" of "VtsVirtioRTCTest" missing variant:
    os:android,image:,arch:x86_64_silvermont,sdk:,link:shared

Export the ADIL using keyword vendor_available:

vendor: true, // installed in /vendor
vendor_available: true, // export for vendors

Then rebuild the system.

Run atest:

atest VtsVirtioRTCTest

x86_64 VtsVirtioRTCTest
-----------------------
VtsVirtioRTCTest (2 Tests)
[1/2] VirtioRTCServiceTest#GetTime: PASSED (1.101s)
[2/2] VirtioRTCServiceTest#SetTime: PASSED (0ms)

Summary (Test executed with 1 devices.)
-------
x86_64 VtsVirtioRTCTest: Passed: 2, Failed: 0, Ignored: 0, Assumption Failed: 0

All tests passed!

Run VTS:

Firstly, build VTS Trade Federation test framework:

m vts -j10

Then enter the VTS Trade Federation Console:

vts-tradefed

Then execute a VTS Test Suite:

run vts -m VtsVirtioRTCTest

================= Results ==================
=============== Consumed Time ==============
    x86_64 VtsVirtioRTCTest: 7s
Total aggregated tests run time: 7s
============== TOP 1 Slow Modules ==============
    x86_64 VtsVirtioRTCTest: 0.27 tests/sec [2 tests / 7282 msec]
============== Modules Preparation Times ==============
    x86_64 VtsVirtioRTCTest => prep = 2887 ms || clean = 5982 ms
Total preparation time: 2s  ||  Total tear down time: 5s
=======================================================
=============== Summary ===============
Total Run time: 1m 2s
1/1 modules completed
Total Tests       : 2
PASSED            : 2
FAILED            : 0
============== End of Results ==============

Note: VTS Trade Federation test framework will not execute the tests immmediately, it will take upto a minute to probe, set up the Device. Test is scheduled, and re-run after a device is found.

Customize the test configuration:

Run make command to build the config, then search for a generated config file.

m VtsVirtioRTCTest
find out/ -name VtsVirtioRTCTest.config

<configuration description="Runs VtsVirtioRTCTest.">
    <option name="test-suite-tag" value="apct" />
    <option name="test-suite-tag" value="apct-native" />

    <!-- Use Root -->
    <target_preparer class="com.android.tradefed.targetprep.RootTargetPreparer">
    </target_preparer>

    <!-- Target location -->
    <target_preparer class="com.android.tradefed.targetprep.PushFilePreparer">
        <option name="cleanup" value="true" />
        <option name="push" value="VtsVirtioRTCTest->/data/local/tmp/VtsVirtioRTCTest" />
    </target_preparer>

    <!-- Test Type -->
    <test class="com.android.tradefed.testtype.GTest" >
        <option name="native-test-device-path" value="/data/local/tmp" />
        <option name="module-name" value="VtsVirtioRTCTest" />
    </test>
</configuration>

Custom config file can be set in Android.bp:

test_config: "Vts_Virtio_RTC_Test.xml",
